Technical requirements:

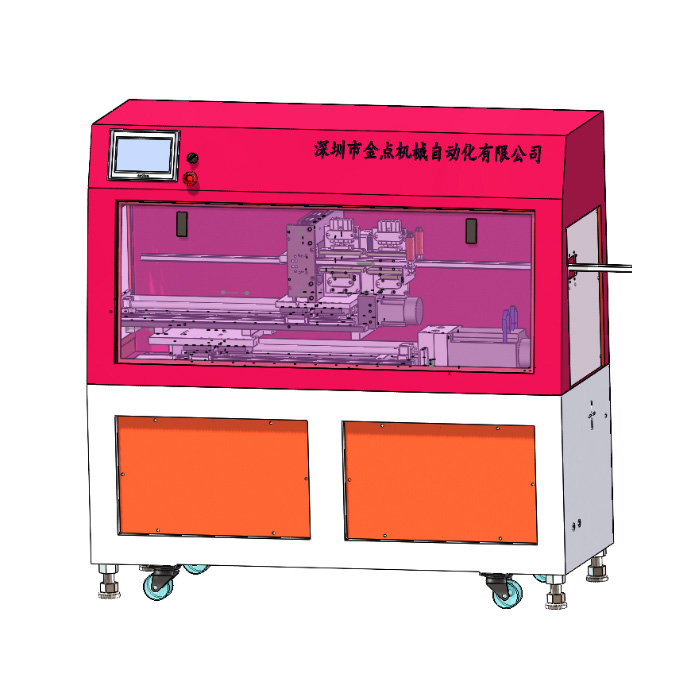

1. The online straight cutting machine Q-01-X3 is a new type, which uses servo tracking and high-precision positioning for feeding.

Manufacturing according to patent number: Invention patent number: 2022226929103/2022218963776/202211251681. X/202210865840.9

Golden dot invention patent technology prohibits imitation or purchase of imitation products.

2. The maximum cutting height is 60 millimeters. The optimal cutting thickness range is 0.8-2MM.

3. The measurement error of the product length at 3 points is within 0.1.

4. The measurement error of product length is within plus or minus 0.05.

5. The machine is equipped with software functions for cutting ultra large shaped pipes and difficult pipes (patent number: 202210865840.9). High speed design.

6. Touch screen, PLC computer control

7. Designed with a minimum speed of 80 to 90 knives per second.

8. It can be cut in combination or individually, with two cutting modes.
